POS

PP6151

15" touch monitor
High performance, High efficiency and Stability
Multi-touch technology and bright, clear screen

Inquiry

Product Features

PP6151

POS Monitor of smart-design

  1. 15" touch monitor
  2. PCAP Touch
  3. Promt processing and convenient scalability
  4. Excellent multi-touch technology & Bright, clean screen
  5. Manufacture by our own technology, "Made in Korea"
  6. Promt customer service

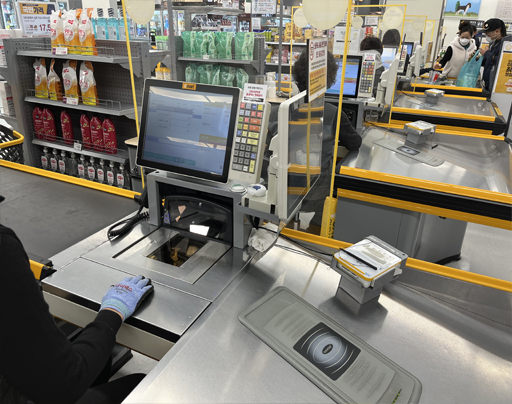

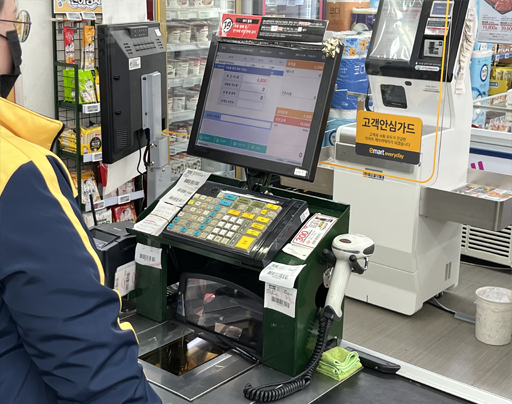

Installation example

Mart
Mart

Product specification

LCD Panel
Screen Diagonal 15" Active Matrix TFT LCD Support Color 16.2M/262K color
Pixel HxY 1024 X 768 White Luminance 250[cd/m2]
Aspect Ratio 4:3 Ratio Contrast Ratio 700:1[Typ.]
Touch Panel
Type Multy Capactive Touch Screen OS supported DOS, WIN, LINUX, IMAX
Interface USB
Video Input
VGA Signal

Analog RGB

D-Sub 15Pin Female Cable

 Display Port

Digital Signal V1.1

20pin standard Cable
Power
Type Combo Internal AC&External DC Adapter Output Voltage DC12V/5V(Inverter/mail), 2.5A
Input Voltage Universal AC 100~230V, 50/60 Hz Consumption 20W
Dimension
Dimension 351.7(W)X45.6(D)X275.2(H)mm
List
